温控器
防爆温控器与电伴热带配套使用后，可以控制管线温度，且可以调整温度设定值。Applied with heating cable, temperature controller can adjust temperature in response to practical need.

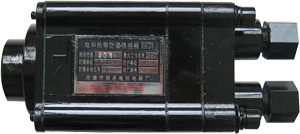

防爆温控器 Temperature Controller 图25

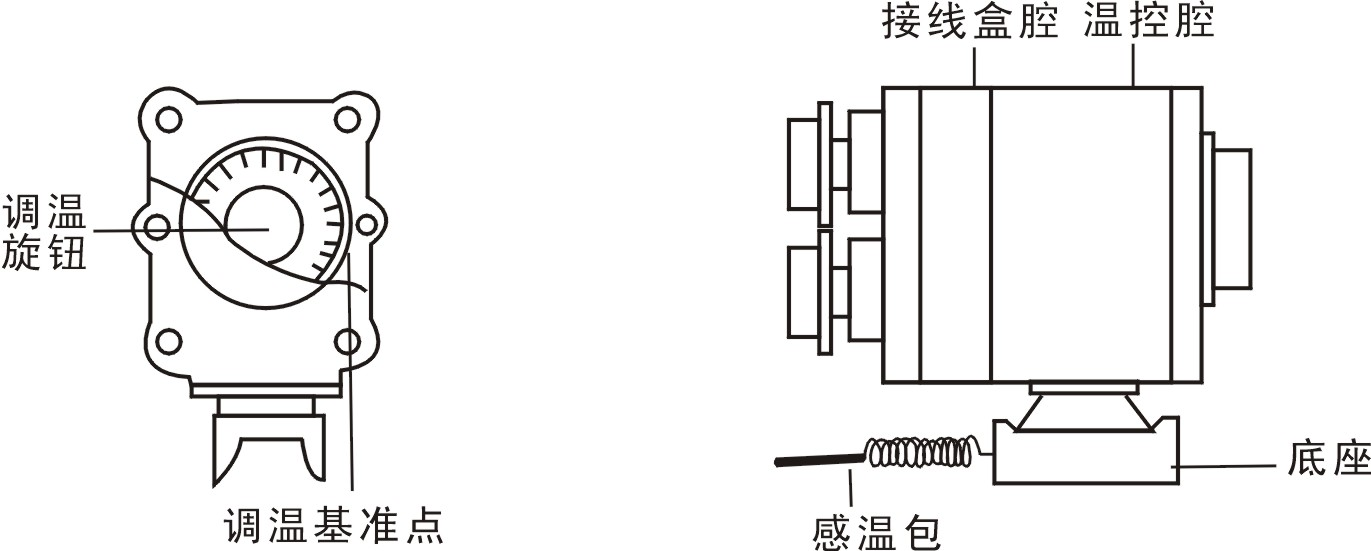

侧面图 图26

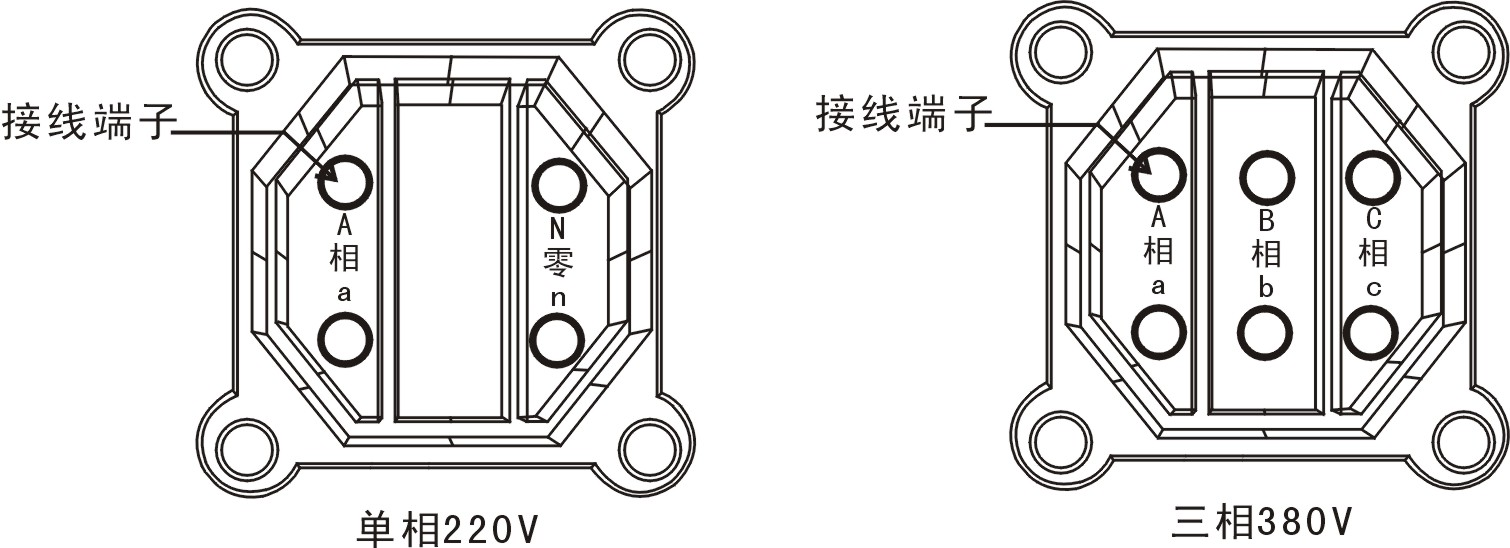

底面图 图27
图28
Maximum temperature: 120℃-150℃-200℃
Explosion-proof temperature controller
ø FWK120：控温范围Temperature control range（0～120℃）
ø FWK200：控温范围Temperature control range（50～200℃）
connecting phase line to A, neutral line to N
Ø a和n用导线接到电源接线盒中，与电热带相接；
a terminal and n terminal are connected to heating cable
Ø 温控器的探头接到管路上，用铝胶带贴在管道上；
attaching the temperature probe to the surface of the pipe with aluminum adhesive tape
Ø 温控器旋钮调到您所需要维持的温度上。
adjust the button to the number of practical temperature
Open the cover of the kit, screw off the connection terminal; insert the line through each terminal.
Ø 按接线腔内的接线图接好电缆，拧紧接线嘴，上紧接线盒盖。
Connect the lines as the diagram, tighten the terminal, and then tighten the cover with screws.
Ø 打开温度调接盒外盖，将温度调整到所需控制温度处，然后拧紧外盖。
Adjust the temperature according to the practice need.
Ø 用卡箍将温控器底座固定在适当位置，并将温控探头紧贴在被测试温度的部位。
Install the temperature controller at the proper position; attach the probe closely to the vessel.
Ø 将引出线接到电源盒腔内，与腔内电伴热带相接，温控器进线接入电源，检查无误后即可送电工作。
Connect the leading-out line with heating cable, connect the temperature controller to the power. Check the connection, and then turn on the power to operate.
Ø 温控探头只能水平或竖直安装，否则会出现温度不稳定现象。
Keep the probe vertical or horizontal, or temperature will be unstable.
Ø 接线盒如有变形，裂痕和损坏，应停止使用，更换新接线盒。
If the kit was deformed, chapped, please change a new one.
1产品结构 Structure
防爆温控器 Temperature Controller 图25
侧面图 图26
底面图 图27
2产品型号 Catalog Number

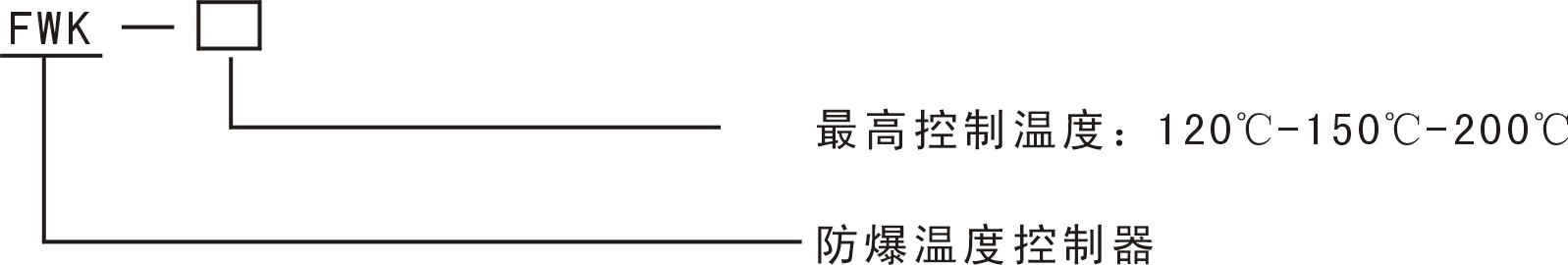

图28Maximum temperature: 120℃-150℃-200℃
Explosion-proof temperature controller
3主要技术指标 Technical Parameters（表11）
|
型号 Catalog number |
防爆等级 Explosion-proof level |
工作电压 Working voltage |
工作电流 Working current |
控温精度 Temperature control precision |
绝缘电阻 Insulation resistance |
电气强度 Dielectric strength |
防护等级 Protection level |
| FWK120/200 | ExedⅡBT4 | 380V/220V | ≤15A | ±2.5℃ | ≥60MΩ | 2000V/min | IP54 |
ø FWK200：控温范围Temperature control range（50～200℃）
4单相温控器安装方法 Installation
Ø 相线接A,零线接N；connecting phase line to A, neutral line to N
Ø a和n用导线接到电源接线盒中，与电热带相接；
a terminal and n terminal are connected to heating cable
Ø 温控器的探头接到管路上，用铝胶带贴在管道上；
attaching the temperature probe to the surface of the pipe with aluminum adhesive tape
Ø 温控器旋钮调到您所需要维持的温度上。
adjust the button to the number of practical temperature
5产品使用与维护 Application and Maintenance
Ø 打开接线盒盖，拧下接线嘴，将进线和出线电缆穿过各自的接线口，上紧接线盒盖。Open the cover of the kit, screw off the connection terminal; insert the line through each terminal.
Ø 按接线腔内的接线图接好电缆，拧紧接线嘴，上紧接线盒盖。
Connect the lines as the diagram, tighten the terminal, and then tighten the cover with screws.
Ø 打开温度调接盒外盖，将温度调整到所需控制温度处，然后拧紧外盖。
Adjust the temperature according to the practice need.
Ø 用卡箍将温控器底座固定在适当位置，并将温控探头紧贴在被测试温度的部位。
Install the temperature controller at the proper position; attach the probe closely to the vessel.
Ø 将引出线接到电源盒腔内，与腔内电伴热带相接，温控器进线接入电源，检查无误后即可送电工作。
Connect the leading-out line with heating cable, connect the temperature controller to the power. Check the connection, and then turn on the power to operate.
Ø 温控探头只能水平或竖直安装，否则会出现温度不稳定现象。
Keep the probe vertical or horizontal, or temperature will be unstable.
Ø 接线盒如有变形，裂痕和损坏，应停止使用，更换新接线盒。
If the kit was deformed, chapped, please change a new one.
